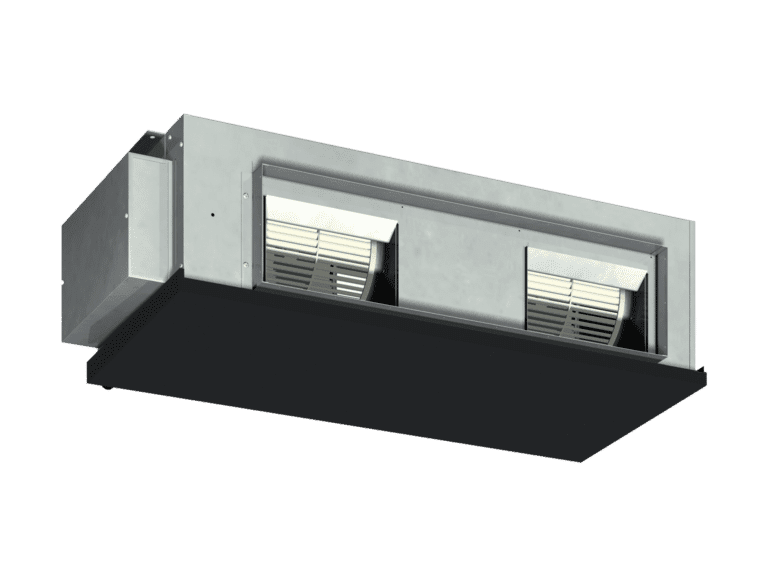

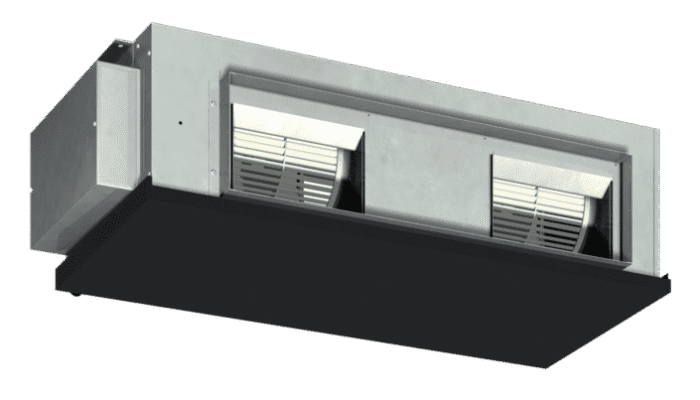

PEA-M GAA Series

Ceiling Concealed

The PEA-M-GAA ducted air conditioning series allows for longer maximum piping length to the concealed ceiling unit, which means your system can be integrated into a wide range of room layouts. This gives you even greater flexibility and customisation options, so you can truly enjoy all the benefits ducted air conditioning can offer you.

Download the latest Mitsubishi Ducted Air Conditioning Systems Brochure

Key features:

• Capacity range: 10.0–14.0 kW
• High external static pressure up to 150 Pa
• Quiet operation
• Year-round reverse cycle comfort
• Wi-Fi control compatible (optional adapter)
• R32 refrigerant
• 5-year warranty

Flexibility in Design

A flexible duct design and increased variation in airflow options allow operation that best matches room layouts.

Remote activation and control

Thanks to optional Wi-Fi technology, you can control the indoor climate of your whole home via your smart device, even when you’re out and about.

Optional Zone Controller

Upgrading to an optional zone controller gives the option of up to 4 or 8 zones, to provide control to different rooms of the home. Zone Controller is compatible with the optional Wi-Fi Control interface and app.

Ideal Airflow

It is possible to adjust distance between air intake and outlets for optimal airflow. With high static pressures (150Pa), GAA Series units are applicable to a wide range of building types and applications.

General Specifications

Unit Dimensions (mm):

1,400 (W) x 634 (D) x 400 (H)

External Static Pressure:

50/100/150Pa

Additional Features:

• R32 refrigerant
• Longer maximum piping length
• PAR-41MAA Wall mounted
  controller (Optional)

The Mitsubishi PEA-M GAA Series offers different models:

• PEAM125GAA
• PEAM140GAA
